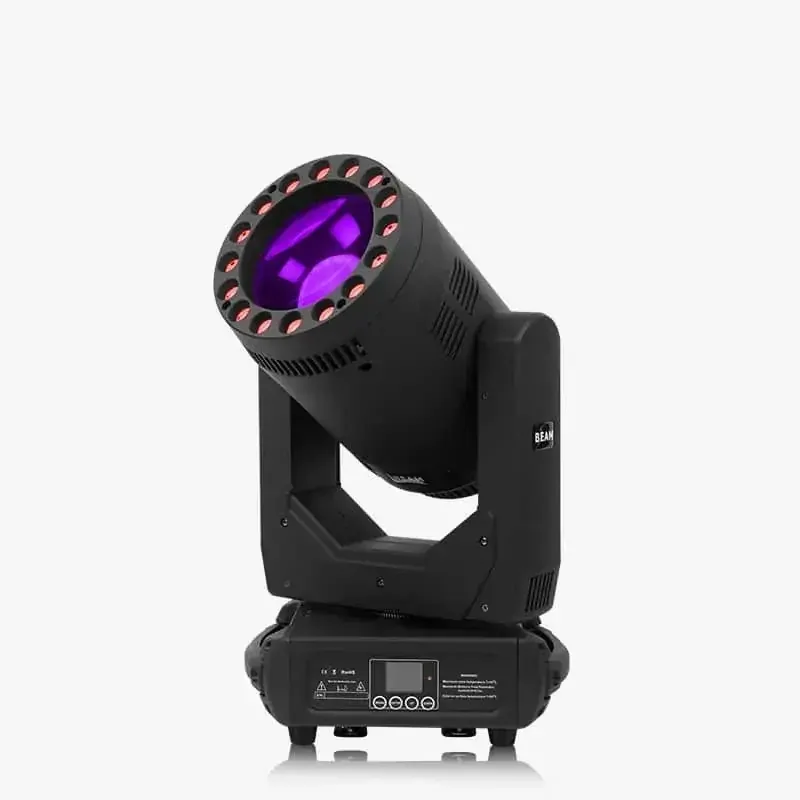

High Brightness Output
Strong beam performance for long-distance projection and high-impact stage looks.
Enter keywords to search products
Enter keywords to search products
VOLTAGE：AC100-240V/50-60HZ
POWER CONSUMPTION：500W/550W/600W/650W
LIGHT SOURCE：300W/330W/350W/380W Cree LED, hight breightness white lamp, CCT: 8000K, Lifespan: 20000H
PAN& TILT: Horizontal: 540°, Vertical: 270°(16bit, electric correction)
DIMMER: 0-100°linear dimming
STROBE: 1-13t/s,M-shutter, high speed stroboscopic effect is adjustable
Color wheel: 7 colors+white, half color effect
Gobo Wheel: 8 gobos+white, high speed jitter effect; rotation gobo wheel: 7 gobo+ white (gobo can be customized)
Prism: 1x16-facet prism+ 1x honeycomb prism, can be overlay with variable speed rotation
Atomization: independent atomization effect
Display: LCD display
Lens: optical glass lens
CONTROL MODE: DMX512/master slave/auto-run/sound
Channel: 13CH
Dmx input/output: 3pin or 5pin XLR singal interface
Product Size：330X360X560mm
N.W：13.6KGS
G.W：14.0KGS
Short model number: B9
SKU：LED300GQA
See The Power of Light
OPTICAL SYSTEM
LIGHT SOURCE：300W/330W/350W/380W Cree LED, hight breightness white lamp, Lifespan: 20000H
Lens: optical glass lens
COLOR SYSTEM
CCT: 8000K
Color wheel: 7 colors+white, half color effect
GOBO SYSTEM
Gobo Wheel: 8 gobos+white, high speed jitter effect; rotation gobo wheel: 7 gobo+ white (gobo can be customized)
EFFECTS
Prism: 1×16-facet prism+ 1x honeycomb prism, can be overlay with variable speed rotation
Atomization: independent atomization effect
DIMMER: 0-100°linear dimming
STROBE: 1-13t/s,M-shutter, high speed stroboscopic effect is adjustable
MOVEMENT PARAMETER
PAN& TILT: Horizontal: 540°, Vertical: 270°(16bit, electric correction)
CONTROL AND PROGRAMMING
CONTROL MODE: DMX512/master slave/auto-run/sound
Channel: 13CH
Display: LCD display
POWER SUPPLY
VOLTAGE：AC100-240V/50-60HZ
POWER CONSUMPTION：500W/550W/600W/650W
Dmx input/output: 3pin or 5pin XLR singal interface
DIMENSION AND WEIGHT
Product Size：330X360X560mm
N.W：13.6KGS
G.W：14.0KGS
IP RATE
IP Rating: IP20
SHORT MODEL NUMBER: B9
Strong beam performance for long-distance projection and high-impact stage looks.
Carefully matched lens, color and gobo components help deliver clear effects.
DMX control modes support flexible programming for events and installations.
Quick sample preparation and project communication for urgent lighting needs.
Support custom logo, packaging, product function matching and project-based stage lighting solutions for distributors, rental companies and engineering projects.
Custom logo, label and packaging options for distributors.
Lighting functions can be matched to project and market requirements.
Support for product selection, samples, specification confirmation and delivery.
No middleman cost
100% strict testing
15+ years experience
OEM / ODM available
3-7 days for sample
1000+ successful cases
A high-output beam moving head with narrow beam angle, fast movement, rich gobos, and prism effects is ideal for nightclub shows.
Beam lights create tight aerial beams, BSW fixtures combine beam, spot and wash functions, while profile lights offer precise framing and projection control.
Yes. Logo, housing color, packaging, lens options and lighting function customization can be discussed based on order quantity.
Sample orders are usually prepared in 3-7 days. Bulk order lead time depends on quantity and customization requirements.
Most professional fixtures support DMX512, RDM, master-slave, auto mode and sound mode. Please check the exact model specification.
The standard warranty is 2 years unless otherwise stated on the quotation or product agreement.
