※※※※※Suitable for almost ALL SCENAIROS with Factory Direct Sales※※※※※
Feature:
◎Remote DMX control system with long lifespan;
◎Intelligent fan noise control;
◎Input signal isolation protection function, to ensure stable signal transmission, free from interference;
◎Automatic error correction: use photo-electricity reset system, self-correction;
◎Intelligent microcomputer self-check function.

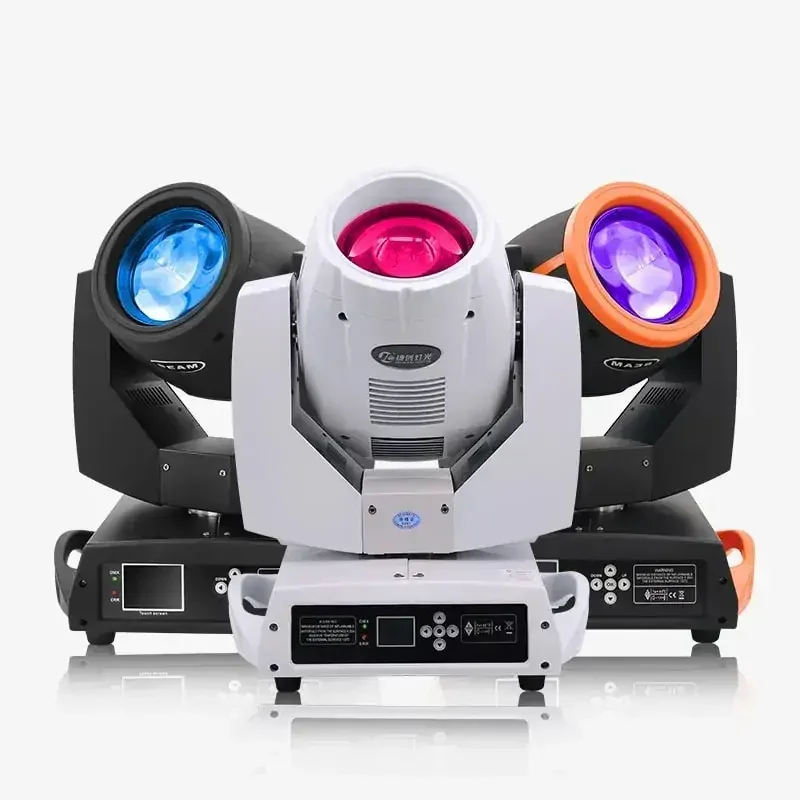

SKU：230A/230C
See The Power of Light
Can only choose between the colorful function and the atomization function. The atomization can be customized for the colorful models or above.
OPTICAL SYSTEM
Light source: Yodn/ Philips /Germany Osram bulb
Lamp: 7R 230W
COLOR SYSTEM
CCT: 8000K
Color wheel:14 dichroic colors + open, rainbow effect with bidirectional rotation, full color effect and half color effect modes switch
GOBO SYSTEM
Gobos:1 fixed gobo wheel, 17 gobos+white, with gobo fast shaking effect
EFFECTS
Prism: 8+16+24 prism, rotating prism can be positioned
Atomization: 0%-99% atomization soft light effect
Dimming: 0%-100% linear dimming
Strobe:1-13 t/s,free strobe and pulse strobe
Focus: electronic focusing, ultra-fine smooth adjustment of focal length
MOVEMENT PARAMETER
Pan& tilt: Pan 540°/ Tilt 270°(16bit)
Outlet aperture：120mm
CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound
Channel: 16/20CH
POWER SUPPLY
Motor: three-phase motor (fast running speed, accurate positioning)
Voltage：AC110-220V/50-60HZ
Power consumption:350W
DIMENSION AND WEIGHT
Product Size：39X32X51cm
Package Size: 45X42X55cm（carton);
Flight case package:
45x37x67cm(1pcs pack); 71x75x43cm(2pcs pack); 87.2×83×58cm(4pcs pack)
N.W:17.45KGS
G.W:19.00KGS
IP RATE
IP Rating: IP20
SHORT MODEL NUMBER: A1
Effect:
Strong beam performance for long-distance projection and high-impact stage looks.
Carefully matched lens, color and gobo components help deliver clear effects.
DMX control modes support flexible programming for events and installations.
Quick sample preparation and project communication for urgent lighting needs.
Support custom logo, packaging, product function matching and project-based stage lighting solutions for distributors, rental companies and engineering projects.
Custom logo, label and packaging options for distributors.
Lighting functions can be matched to project and market requirements.
Support for product selection, samples, specification confirmation and delivery.
No middleman cost
100% strict testing
15+ years experience
OEM / ODM available
3-7 days for sample
1000+ successful cases
A high-output beam moving head with narrow beam angle, fast movement, rich gobos, and prism effects is ideal for nightclub shows.
Beam lights create tight aerial beams, BSW fixtures combine beam, spot and wash functions, while profile lights offer precise framing and projection control.
Yes. Logo, housing color, packaging, lens options and lighting function customization can be discussed based on order quantity.
Sample orders are usually prepared in 3-7 days. Bulk order lead time depends on quantity and customization requirements.
Most professional fixtures support DMX512, RDM, master-slave, auto mode and sound mode. Please check the exact model specification.
The standard warranty is 2 years unless otherwise stated on the quotation or product agreement.
