High Brightness Output
Strong beam performance for long-distance projection and high-impact stage looks.
Enter keywords to search products
Enter keywords to search products

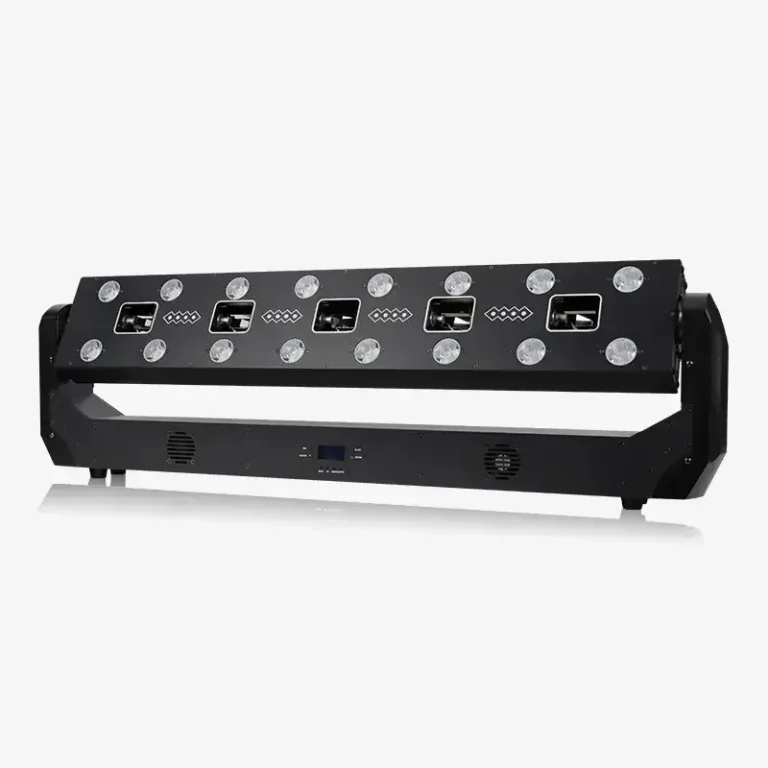

voltage: AC110V-230V Rated frequency: 50HZ-60Hz
power consumption: 90W.
Light source: 300MW/638NM red laser *8pcs+ 3w*8pcs warm Cree led lamp (CCT: 3200K)
Laser power: R2400MW
Laser pattern: multiple coarse beam effects +LED matrix effects
Laser modulation signal: TTL modulation signal
Control mode: DMX512/master-slave/auto/sound
Control channels: 23CH
Strobe: 1-25t/s
Laser light source: Red 300MW/638NM （500MW optional)
Scanning system: stepper motor
Scanning Angle: ±25°
Cooling system: fan forced cooling system
Working environment: indoor
Inner box size: 112x16x25cm， G.W:.6.6kgs
Outer box size: 112x38x29cm (2 packs);15kgs
Short model number: I7
SKU：CTJG01BA/CTJG02BA
See The Power of Light
Effect:
Video:
Strong beam performance for long-distance projection and high-impact stage looks.
Carefully matched lens, color and gobo components help deliver clear effects.
DMX control modes support flexible programming for events and installations.
Quick sample preparation and project communication for urgent lighting needs.
Support custom logo, packaging, product function matching and project-based stage lighting solutions for distributors, rental companies and engineering projects.
Custom logo, label and packaging options for distributors.
Lighting functions can be matched to project and market requirements.
Support for product selection, samples, specification confirmation and delivery.
No middleman cost
100% strict testing
15+ years experience
OEM / ODM available
3-7 days for sample
1000+ successful cases
A high-output beam moving head with narrow beam angle, fast movement, rich gobos, and prism effects is ideal for nightclub shows.
Beam lights create tight aerial beams, BSW fixtures combine beam, spot and wash functions, while profile lights offer precise framing and projection control.
Yes. Logo, housing color, packaging, lens options and lighting function customization can be discussed based on order quantity.
Sample orders are usually prepared in 3-7 days. Bulk order lead time depends on quantity and customization requirements.
Most professional fixtures support DMX512, RDM, master-slave, auto mode and sound mode. Please check the exact model specification.
The standard warranty is 2 years unless otherwise stated on the quotation or product agreement.
