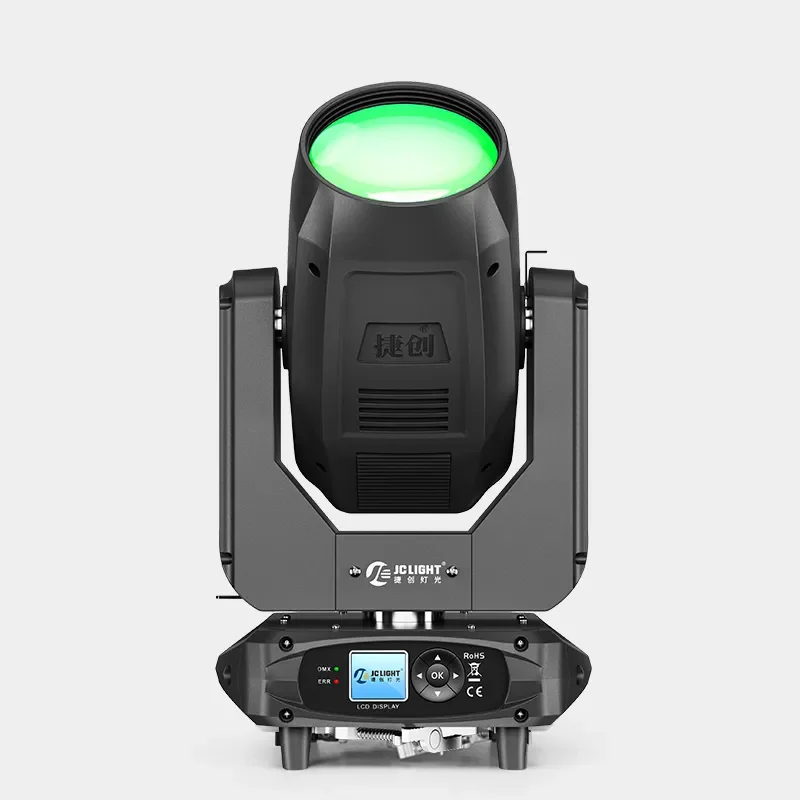

The Kylin 18R 380W Beam Light is an ideal choice for professional stage lighting, featuring an 18R 380W JCLIGHT special bulb for bright and vivid illumination. Equipped with a color wheel offering 14 colors plus white, along with 13 fixed gobos and 6 effect gobos, as well as an 8+16+24 double prism system, it delivers a variety of visual effects. The independent atomization function allows for adjustable light softness, making it suitable for various stage performances and events.
See The Power of Light
OPTICAL SYSTEM
Light source: 18R 380w JCLIGHT special bulb
Beam Angle: 0-2°
COLOR SYSTEM
Multicolor: 6 multicolor
CCT: 8400K
Color wheel: 1 color wheel, 14 colors + white,rainbow effect with bidirectional rotation, full color effect and half color effect modes switch
GOBO SYSTEM
Gobos: 13 fixed gobo, 6 effect gobo
EFFECTS
Focus: focus and zoom in function
Prism: 8+16+24 double prism, rotation effect
Atomization: 15%-60%, independent atomization soft light effect
Dimmer: 0-100% electronic dimming
Strobe: 0-30 t/s
Lifespan:20000H
MOVEMENT PARAMETER
Rotation Angle: 0-3.8°
Pan& tilt: 540°Pan scaning,270°Tilt scanning;8/16-bit smooth and accurate Pan/Tilt rotation
Motor: three-phase motor (fast running speed, accurate positioning)
CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound/Built-in RDM program
Channel: 16/20CH
POWER SUPPLY
Voltage: AC110-220V/50-60Hz
Power consumption: 500W
Lamp: 380W
DIMENSION AND WEIGHT
Product Size:360X350X510mm
Package Size:580X480X420mm
N.W: 18KGS
G.W: 22KGS
IP RATE
IP Rating: IP20
SHORT MODEL NUMBER: A13
Effect:
Strong beam performance for long-distance projection and high-impact stage looks.
Carefully matched lens, color and gobo components help deliver clear effects.
DMX control modes support flexible programming for events and installations.
Quick sample preparation and project communication for urgent lighting needs.
Support custom logo, packaging, product function matching and project-based stage lighting solutions for distributors, rental companies and engineering projects.
Custom logo, label and packaging options for distributors.
Lighting functions can be matched to project and market requirements.
Support for product selection, samples, specification confirmation and delivery.
No middleman cost
100% strict testing
15+ years experience
OEM / ODM available
3-7 days for sample
1000+ successful cases
A high-output beam moving head with narrow beam angle, fast movement, rich gobos, and prism effects is ideal for nightclub shows.
Beam lights create tight aerial beams, BSW fixtures combine beam, spot and wash functions, while profile lights offer precise framing and projection control.
Yes. Logo, housing color, packaging, lens options and lighting function customization can be discussed based on order quantity.
Sample orders are usually prepared in 3-7 days. Bulk order lead time depends on quantity and customization requirements.
Most professional fixtures support DMX512, RDM, master-slave, auto mode and sound mode. Please check the exact model specification.
The standard warranty is 2 years unless otherwise stated on the quotation or product agreement.
