High Brightness Output
Strong beam performance for long-distance projection and high-impact stage looks.
Enter keywords to search products
Enter keywords to search products

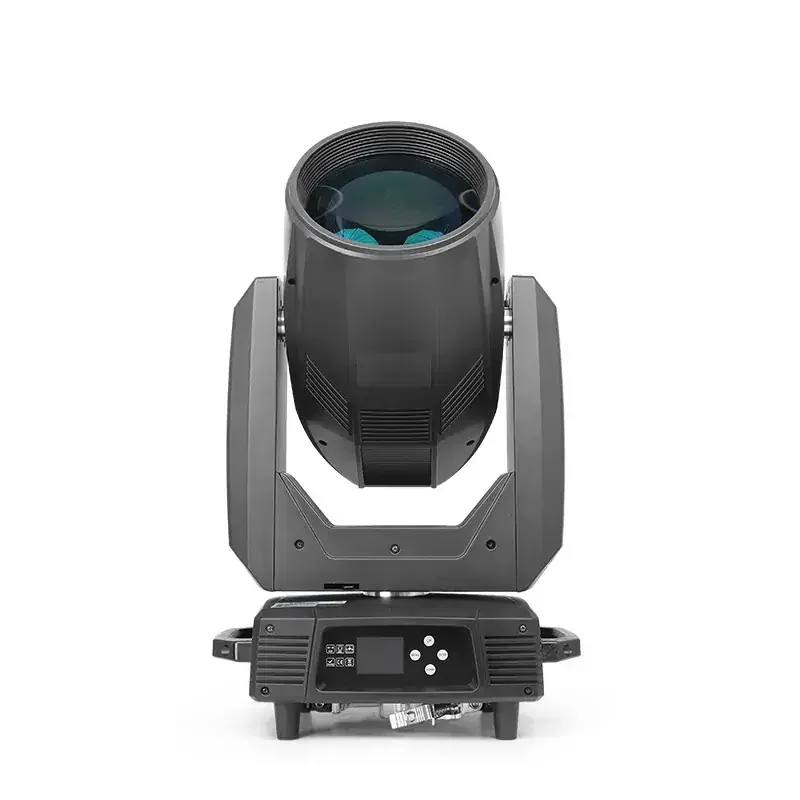

680S SUPER BEAM LIGHT features an original Osram lamp with a 200mm large diameter optical system, providing a powerful beam with a color temperature of 7200K. Its color system includes 11 colors plus white, with linear CTO adjustment, ensuring vibrant color mixing.
The gobo system is equipped with 11 fixed gobos and 6 effect gobos, delivering dynamic patterns and effects. The dual prism system, with 8 and 24 prisms, offers rotation and overlay capabilities, while the electronic atomization system provides uniform, soft light with 0-100% linear adjustment. The fixture also supports electronic dimming and high-speed strobing at 0-14 t/s.
With smooth and precise 540° pan and 270° tilt movement, controlled by three-phase motors, this light ensures reliable performance. It operates on DMX512 with 16 channels and features a 20 million pixel color LCD touch screen for easy programming. The unit is powered by a wide voltage range of AC90-260V, with a power consumption of 680W. Compact and robust, it measures 45x30x70cm and weighs 25kg, making it an ideal choice for professional lighting applications.
SKU：Y680
See The Power of Light
OPTICAL SYSTEM
Light source: original Osram 420w lamp, CCT:7200k
Optics: 200mm large diameter
COLOR SYSTEM
Color wheel: 11 colors + white+ linear CTO color temperature adjustment
GOBO SYSTEM
Gobo wheel: 11 fixed gobo, 6 effect gobo
EFFECTS
Prism: double prism, 8 prism, 24 prism,which can be overlay and rotation
Atomization: electronic 0-100% linear atomization soft light effect, Independent single-sided high transmittance atomizing lens, achieved by electric focusing, atomizing spot uniform and soft.
Dimmer: 0-100% electronic dimming
Strobe: 0-14 t/s
MOVEMENT PARAMETER
Pan& tilt: 540°Pan scaning,270°Tilt scanning;8/16-bit smooth and accurate Pan/Tilt rotation
CONTROL AND PROGRAMMING
Control: DMX512/master-slave/Auto-run/sound/Built-in RDM program
Channel: 16CH
XY Motor: three-phase motor
Display system: 20 million pixel color LCD touch screen; Touch key
POWER SUPPLY
Voltage: AC90-260V/50-60Hz
Power consumption: 680W
DIMENSION AND WEIGHT
Product Size: 45x30x70cm
N.W: 25KGS
G.W: 27KGS
Video:
Strong beam performance for long-distance projection and high-impact stage looks.
Carefully matched lens, color and gobo components help deliver clear effects.
DMX control modes support flexible programming for events and installations.
Quick sample preparation and project communication for urgent lighting needs.
Support custom logo, packaging, product function matching and project-based stage lighting solutions for distributors, rental companies and engineering projects.
Custom logo, label and packaging options for distributors.
Lighting functions can be matched to project and market requirements.
Support for product selection, samples, specification confirmation and delivery.
No middleman cost
100% strict testing
15+ years experience
OEM / ODM available
3-7 days for sample
1000+ successful cases
A high-output beam moving head with narrow beam angle, fast movement, rich gobos, and prism effects is ideal for nightclub shows.
Beam lights create tight aerial beams, BSW fixtures combine beam, spot and wash functions, while profile lights offer precise framing and projection control.
Yes. Logo, housing color, packaging, lens options and lighting function customization can be discussed based on order quantity.
Sample orders are usually prepared in 3-7 days. Bulk order lead time depends on quantity and customization requirements.
Most professional fixtures support DMX512, RDM, master-slave, auto mode and sound mode. Please check the exact model specification.
The standard warranty is 2 years unless otherwise stated on the quotation or product agreement.
